Description
Features & Benefits:
- 150mm high back upstand exceeds minimum requirements
- Low profile lapped joint between sections allows any length of brick, block, or stone to be used without difficulty

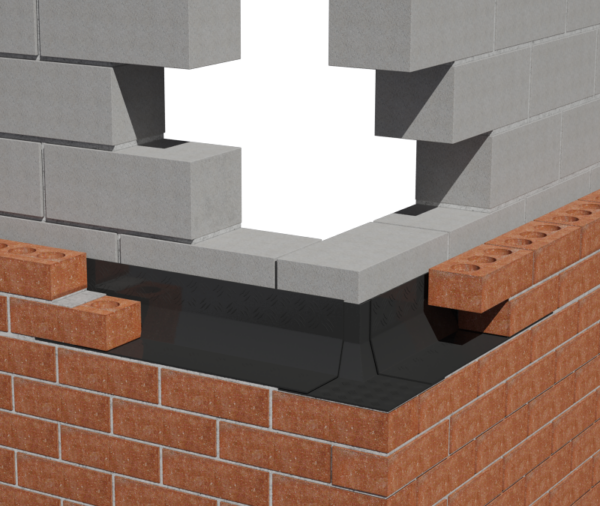

- Angled section between cavity tray base and rear upstand automatically sheds water to the outer leaf
- Cavity tray builds into the outer leaf only to speed up installation to allow both inner and outer leaves to be built independently if required
- Choice of two lengths: 880mm for general use; 460mm to reduce waste when making up a run of cavity tray to the required length
- System available on request with pre-applied polystyrene strips
- Polystyrene offers a visual locator of the cavity tray so aiding the installation of post fitted lead work – this may incur additional charge
Where to use:
- At the abutment of a flat roof with a cavity wall
- At the abutment of a lean-to or mono pitch roof with a cavity wall
- Over concrete ring beams
- Over airbricks, cavity liners, ducts, meter boxes, etc.
- Clear cavity widths of between 50mm-150mm
