Description
Features & Benefits:
- Integral 4mm vermin barrier and rainwater baffle as recommended by BS5250, to reduce ingress of large nest building insects, mammals, and rainwater penetration to the cavity.
- External ribs & tapered profile, to key into mortar for secured fixing.
- Full height upstand to cavity side, to maintain drainage and minimise the impact on blockage from cavity cement build up.
- Discrete water outlet, to minimise the impact and reduce visibility for a truly concealed wall weep.
- Venturi effect outlet tube to reduce pressure, allowing for optimal water drainage.
- Extension tube available for wide walls and render – IW500EX.
Where to use:
- Any situation where water must be discharged from an external wall, including:
- At ground floor slab level
- Within cavity tray systems
- Over external lintels
- On external masonry walls
Invisiweep
Height | Width | Length | Colour | Box Quantity | Product Code |
---|---|---|---|---|---|
65mm | 10mm | Various | 50 | IW50 | |
65mm | 10mm | 102mm | Various | 200 | IW200 |

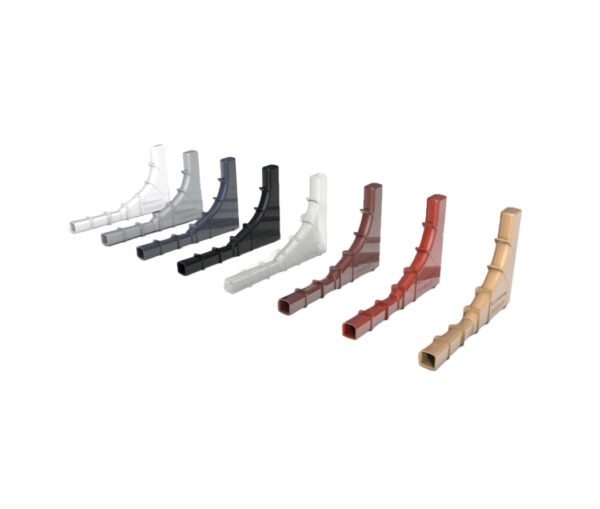

State required colour at the end of the required product code: TE:Terracotta BU:Buff BR:Brown CL:Clear WH:White GR:Grey BL:Black BB:Blue Black
Extension
Height | Width | Length | Colour | Box Quantity | Product Code |
---|---|---|---|---|---|
6mmø | 6mmø | 500mm | Clear | 10 | IW500EX |
